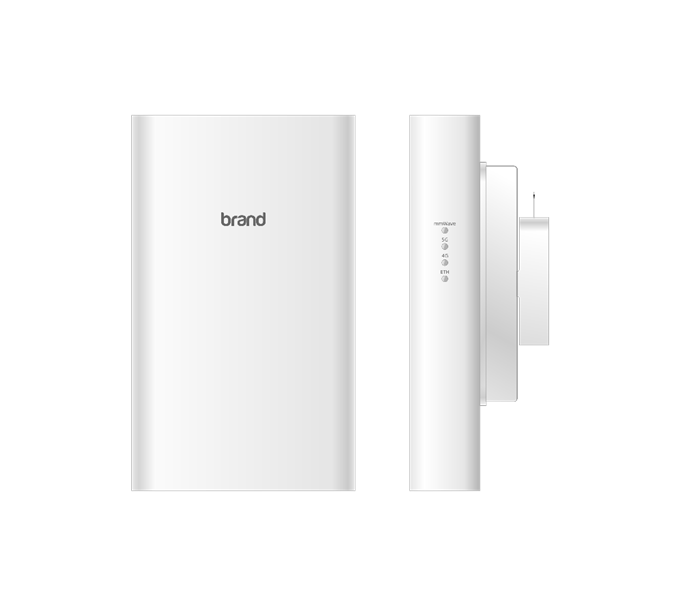

5G outdoor CPE is a high-speed packet access FWA product. It is a multi-mode wireless terminal for home broadband, Office and industrial park. You can connect the JT9100P with the RJ45 interface of indoor router or connect the CPE with a computer. In the service area of the 5G mmWave / 5G-Sub6 / 4G LTE / 3G UMTS network, you can surf the Internet freedom.
Air Interface:
3G&4G&5G Technical Standard | 5G: 3GPP Release16 4G: 3GPP Release15 3G: 3GPP Release8 | |
3G&4G&5G Operating Frequency | 5G Sub-6G: FDD: n1/3/5/7/8/20/26/28 TDD: n38/40/41/77/78/79 5G mmWave: N257/N258 4G LTE: FDD: B1/3/5/7/8/18/19/20/26/28/32 TDD: B34/38/39/40/41/42/43 3G UMTS: B1/B5/B8 BLE: 2.4GHz | |
| 5G NR | SCS | Sub6G：15KHz / 30KHz mmW：120KHz |
| MAX BW | 5G Sub-6G DL 3NR 240MHz, 100MHz/CC UL 100MHz, 100MHz/CC 5G mmWave DL 800MHz, 100M/CC, 200M/CC UL 400MHz, 100M/CC, 200M/CC | |
| DL CA_Sub6G | DL 3NR and 4*4MIMO See sheet - NR Sub6G CA | |
| UL CA_Sub6G | UL Inter band 2NR and 2*2MIMO See sheet - NR Sub6G CA | |
| EN-DC_Sub6G | DL 5L+ 2NR / 6L + 1NR, LTE 4*4MIMO and NR 4*4MIMO UL 1L +1NR See sheet - NR Sub6G CA | |
| DL SA-DC @ mmW | DL 1FR1 + 1FR2 8NR and 2*2MIMO See sheet - NR mmW CA | |
| UL SA-DC @ mmW | UL 1FR1 + 1FR2 4NR and 2*2MIMO See sheet - NR mmW CA | |
| EN-DC @ mmW | DL 6L + 1FR2 See sheet - NR mmW CA | |
| DL MIMO | [DL 4*4 MIMO]: n1/3/7/38/40/41/77/78/79 [DL 2*2 MIMO]: n5/8/20/26/28 n257/258 | |
| UL MIMO | [UL 2*2 MIMO]: n38/41/77/78/79 n257/258 | |
| Operating Bandwidth | FDD: 5MHz, 10MHz, 15MHz, 20MHz, 25MHz, 30MHz, 40MHz, 50MHz TDD: 10MHz, 15MHz, 20MHz, 25MHz, 30MHz, 40MHz, 50MHz, 60MHz, 80MHz, 90MHz,100MHz | |
| SRS | [NSA]: 1T4R [SA]: 2T4R [Band]: n38/41/77/78/79 | |
| 3GPP Feature | TTI Bundling, SPS, RoHC, MFBI Handover: inter-Frequency / intra-Frequency | |
4G LTE | DL CA | Supports DL 7CC CA, 4*4MIMO See sheet - LTE_EA CA |
| UL CA | Supports Inter band 2CC and Intra band 2CC CA See sheet - LTE_EA CA | |
| Transmission mode | FDD: TM2, TM3 and TM4 TDD: TM2, TM3, TM4, TM7, TM8 and TM9 | |
| QoS | Standardized QCIs: QCI1~QCI9 Extended QCIs: QCI128~QCI254 | |
| MIMO | [DL 4*4 MIMO]: B1/B3/B7/B34/B38/B39/B40/B41/B42/B43 [DL 2*2 MIMO]: B5/B8/B18/B19/B20/B26/B28/B32 | |
| Operating Bandwidth | FDD: 5MHz, 10MHz, 15MHz, 20MHz TDD: 10MHz, 15MHz, 20MHz | |
| 3GPP Feature | TTI Bundling, SPS, RoHC, MFBI Handover: inter-Frequency / intra-Frequency | |
Performance :
| 5G NR | Maximum Throughput | Sub6G Modulation and Demodulation: DL 256QAM, UL 256QAM mmW Modulation and Demodulation: DL 256QAM, UL 64QAM 5G mmW Peak Rate: DL: FR1(100MHz)+FR2(800MHz) up to 10Gbps UL: FR1(100MHz)+FR2(400MHz) up to 3.38Gbps 5G SA Peak Rate: 4Gbit/s (DL) and 900Mbit/s(UL) ENDC Peak Rate: 4.9Gbit/s (DL) and 900Mbit/s(UL) DL: 2CC 200MHz TDD+1CC 40MHz FDD UL: 1CC 100MHz，TDD 2x2 MIMO |
| 4G LTE | Maximum Throughput | Modulation and Demodulation: DL 256QAM, UL 256QAM CA: DL 7CC CA and UL inter/intra-band 2CC CA CAT: DL CAT20 and UL CAT18 FDD Peak Rate: 2.0Gbit/s (DL) and 200Mbit/s (UL) TDD (SA2) Peak Rate: 1.4Gbit/s (DL) and 40Mbits (UL) |
| 3G UMTS | Maximum Throughput | HSPA+ DL CAT24, 2*2MIMO, 64QAM, Peak Rate 42.4Mbps UL CAT7, SISO, 16QAM, Peak Rate 11.5Mbps |
Hardware:
| Memory | 8Gb Nand (8bit) Flash + 8Gb LPDDR4x (16-bit) RAM | |
| Power | AC: 100V~240V, 50Hz/60Hz DC: 56V/1.07A | |
| Power Consumption | Maximum Power Consumption: <= 45W Typical Power Consumption: < 28W | |
| LED | 5G Sub6 Indication LED, 5G mmW Indication LED，4G Indication LED 5G Sub6 indicate (5G), RGB 5G mmW indicate (5G), Green 4G indicate (4G/3G), RGB ETH indicate integrated with RJ45 | |
| USIM/SIM | 1 x USIM Card Slot (4FF, nano-SIM card),3V SIM card and 1.8V SIM card. support SIM/USIM/UIM,standard 6 PIN SIM card interface. Compatible with eSIM (only design a universal eSIM Pakage in PCB, function need be cooperate with final carrier ) | |
| External Port | 1 x GE LAN Port for PSU (RJ45, non-standard PoE), supporting 10/100/1000/10000Mbit/s 1 x USIM card slot (4FF, nano-SIM card) 1 x USB typeB2.0 (Micro-B, Only for debug) 1 x BLE4.0 (For CPE installation and maintenance based on APP) | |
| Button | 1 x Reset button (Pinhole)
| |
| Dustproof and Waterproof Specifications | IP65
| |
| ESD | ESD Protection circuit；Contact±8KV、Air±10KV Provide outdoor ground terminal to lower the ground potential | |
| 3GPP | Chipset | [BB]: Qualcomm SDX65 [RF]: Qualcomm SDR735*2, QTM547*2 |
| Transmit Power | 5G NR: PC1.5: N78/N79 PC2: N40/N41/N77 PC3: N1/N3/N5/N7/N8/N20/N26/N28/N38 PC1: N257/N258 4G LTE: PC2: B38/B41/B42/B43, HPUE PC3: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32/B34/B39/B40 | |
